| Electrical Parameters | |
| Input Voltage | AC 100-240 V, 50/60 Hz |

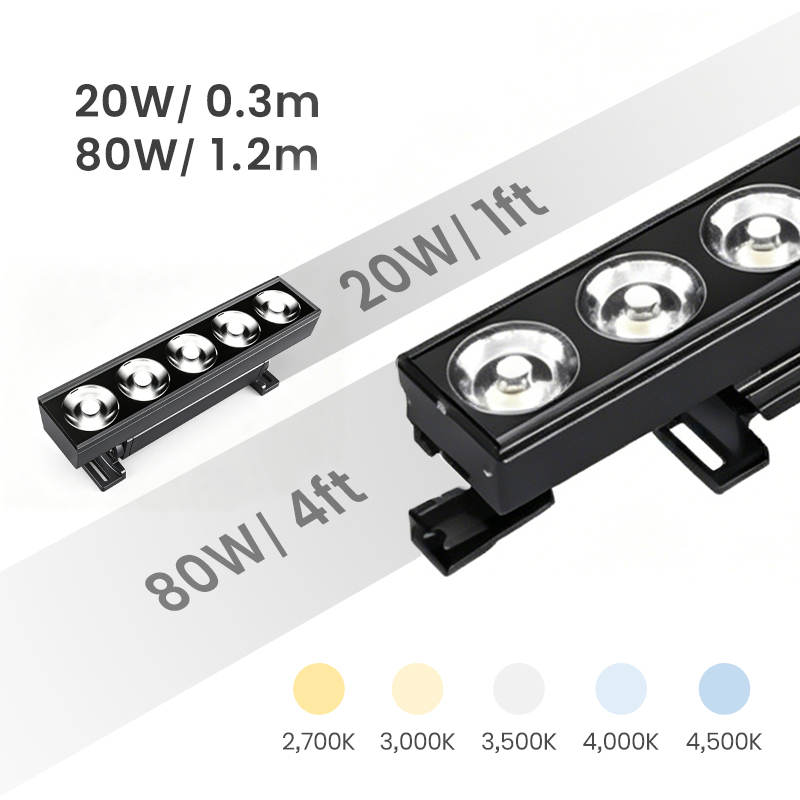

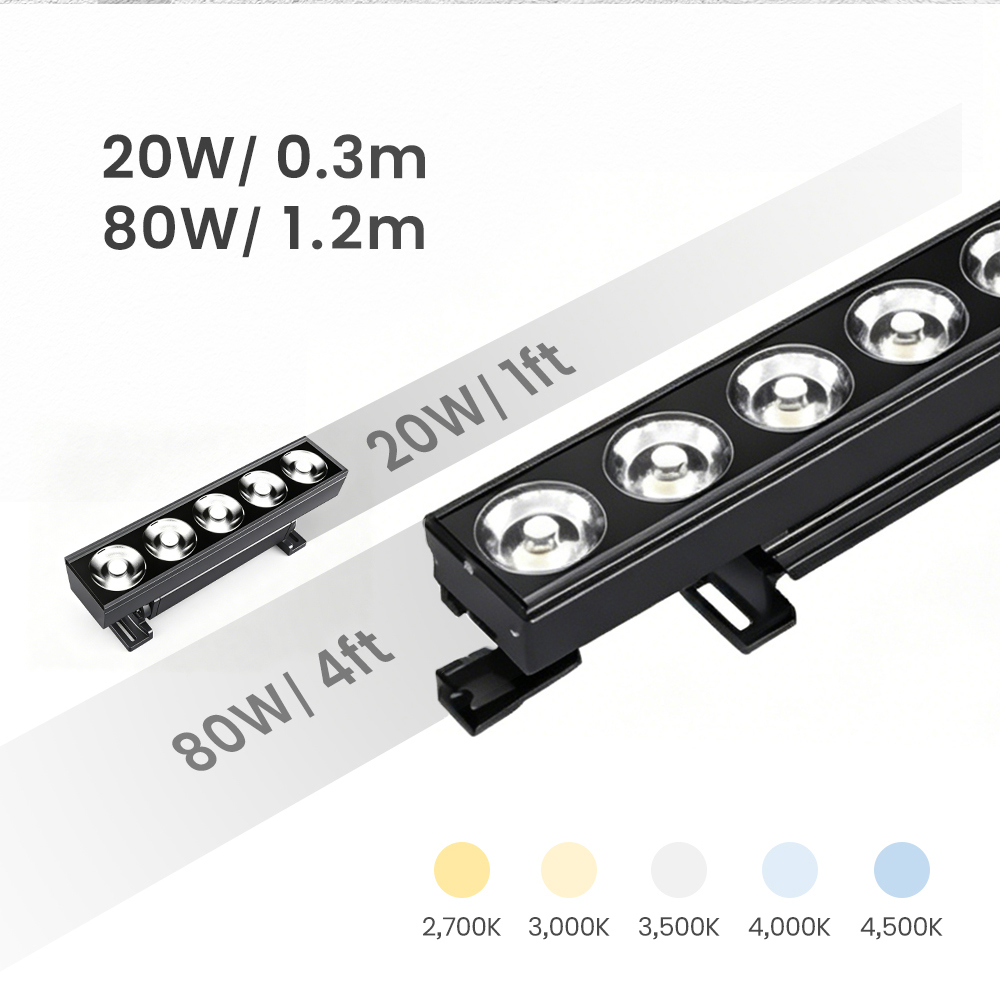

| Power | 80W/1.2m, 20W/0.3m |
| Circuit | Built-in driver and switching power supply |

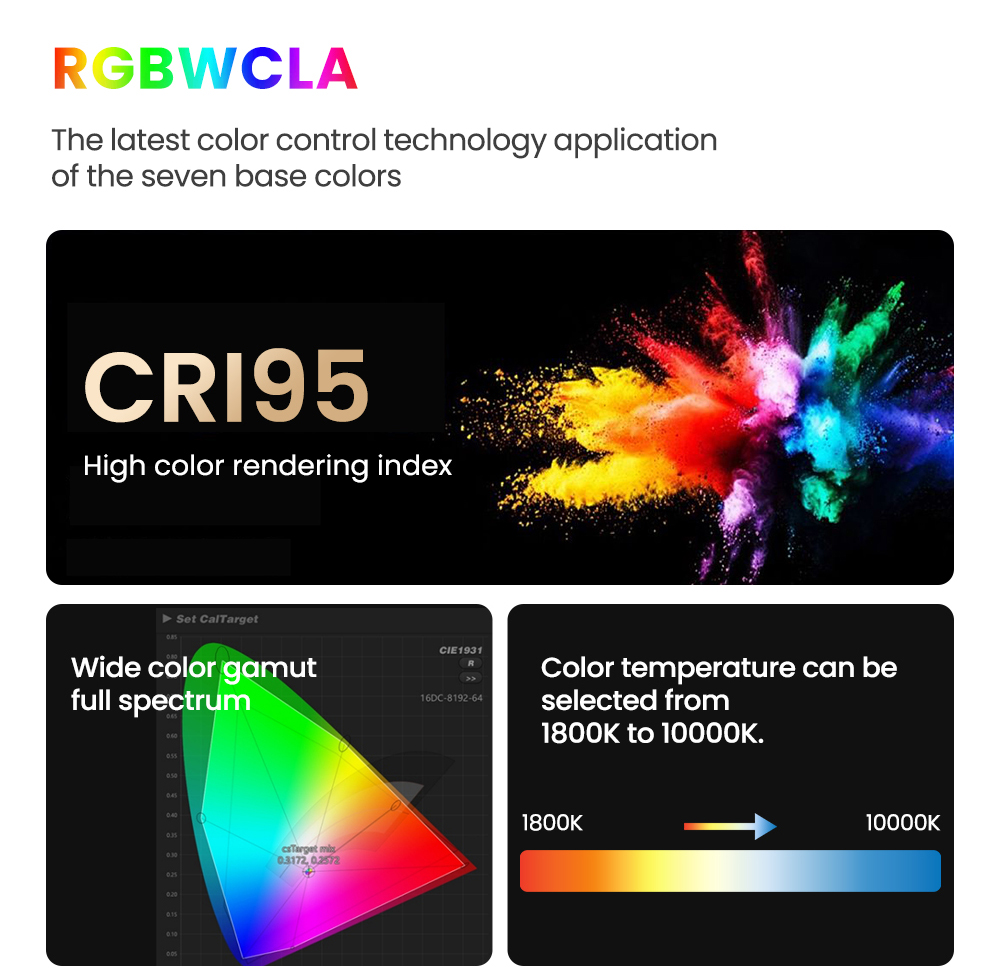

| Software Features | Supports power adjustment for individual pixels and full fixture; white balance + CCT tuning, enabling color temperature range 1800K–10000K |
| Dimming | Non-linear GAMA curve, 0–100% stepless dimming |
| Heat Dissipation | Built-in temperature monitoring system to maintain operating temperature |

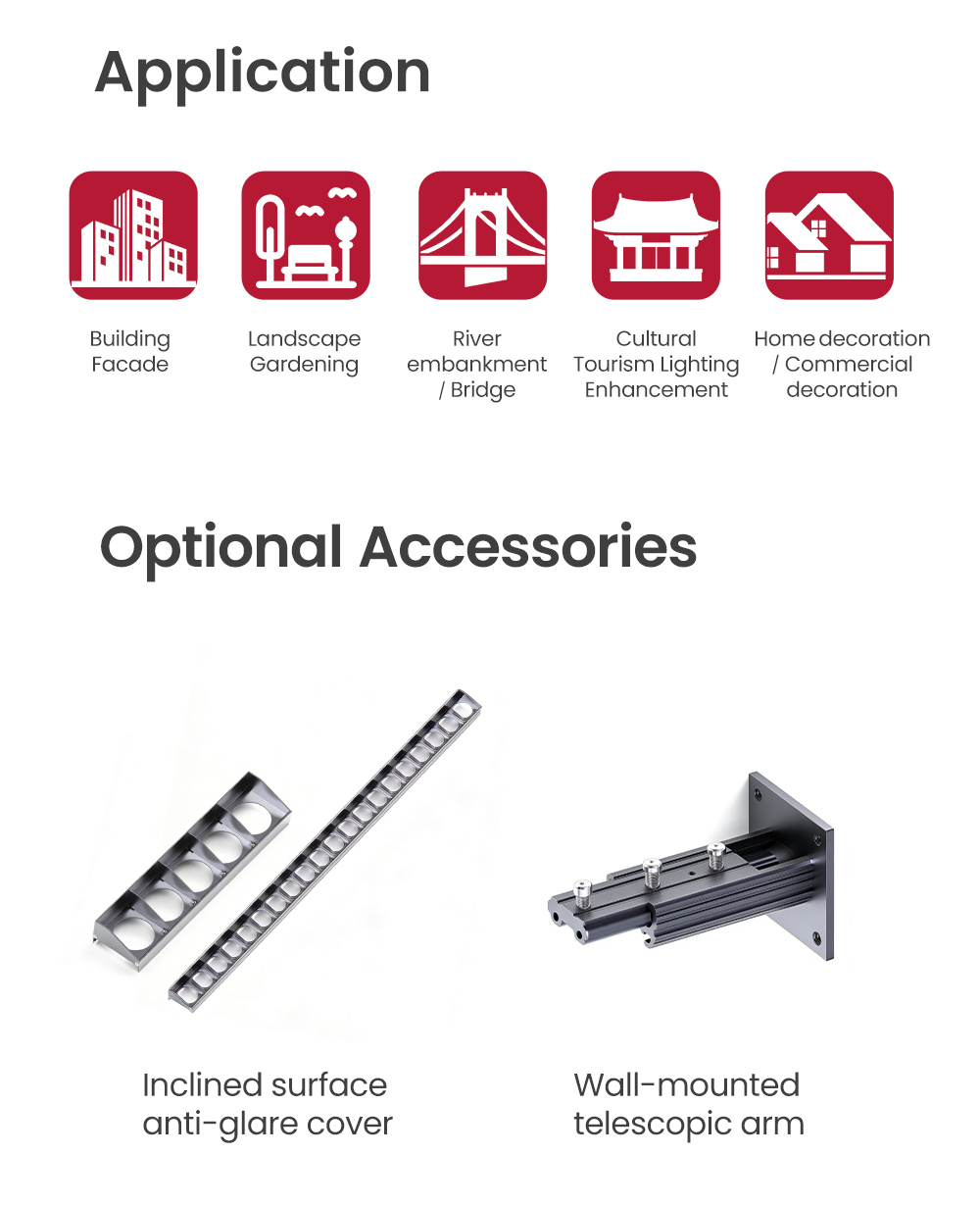

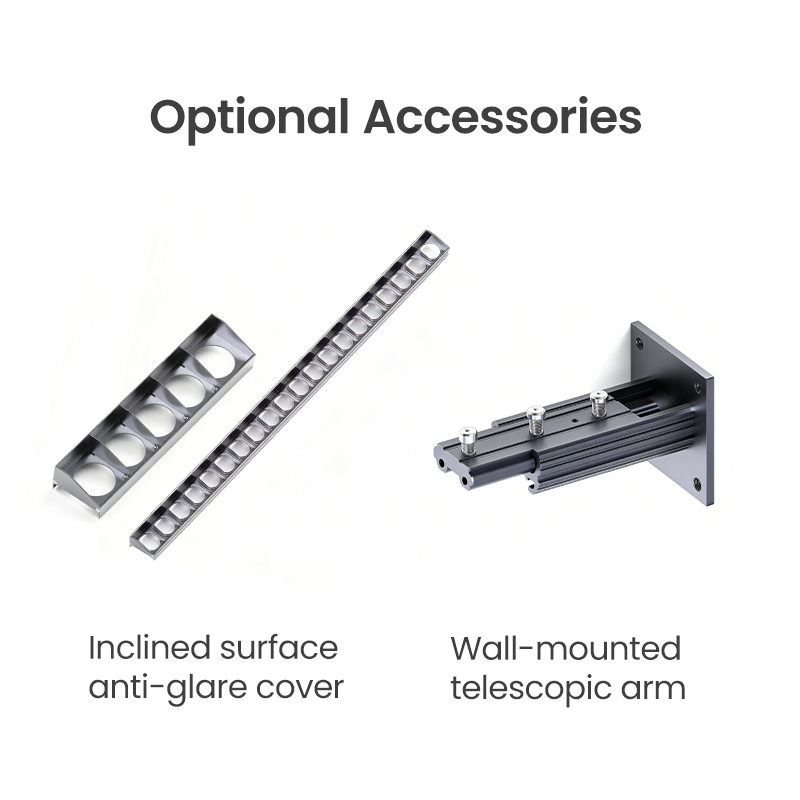

| Optional Accessories | Waterproof plugs, junction box |
| Control | |
| Protocol | DMX/RDM |
| PWM Frequency | 12 KHz |
| RDM Function | DMX/RDM enabled; real-time adjustment of power, white balance, etc. |
| System Compatibility | Works with DMX512/RDM third-party control systems |
| Structure | |
| Housing | High-strength AL6063 extruded aluminum |
| Coating | Anti-salt spray polyester powder coating; optional colors: dark grey, black, white |

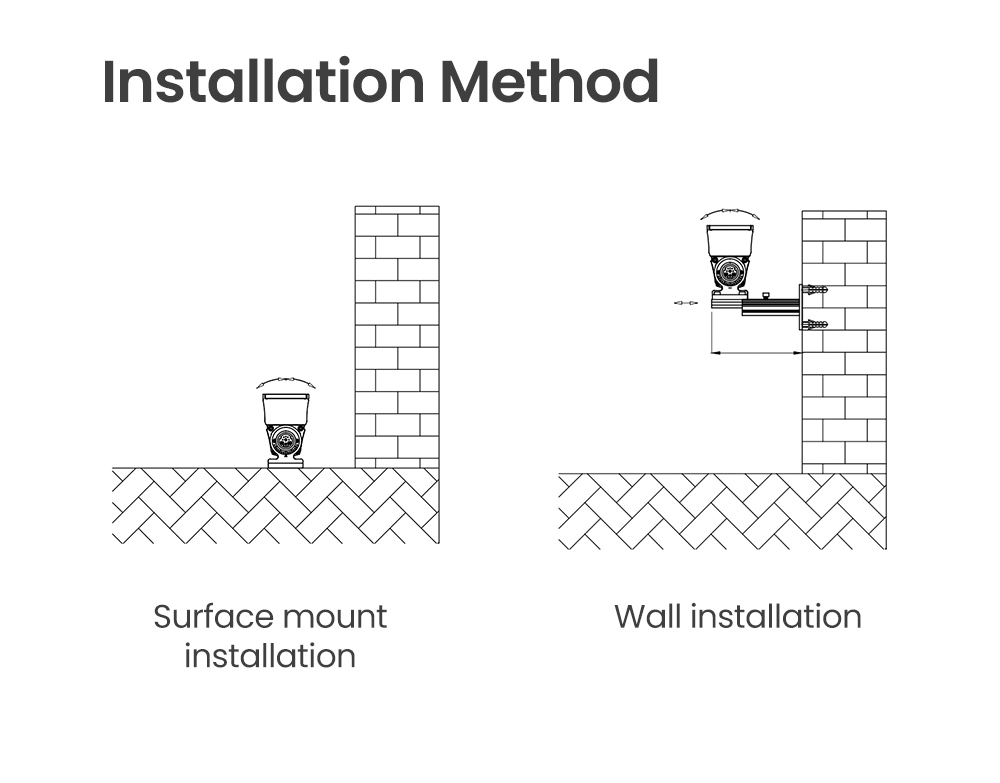

| Installation | Surface mount, recessed mount, adjustable telescopic mounting accessories |
| Adjustment Range | ±90° |
| Operating Temperature | -40°C to 50°C |
| Storage Temperature | -25°C to 70°C |
| Certifications | |

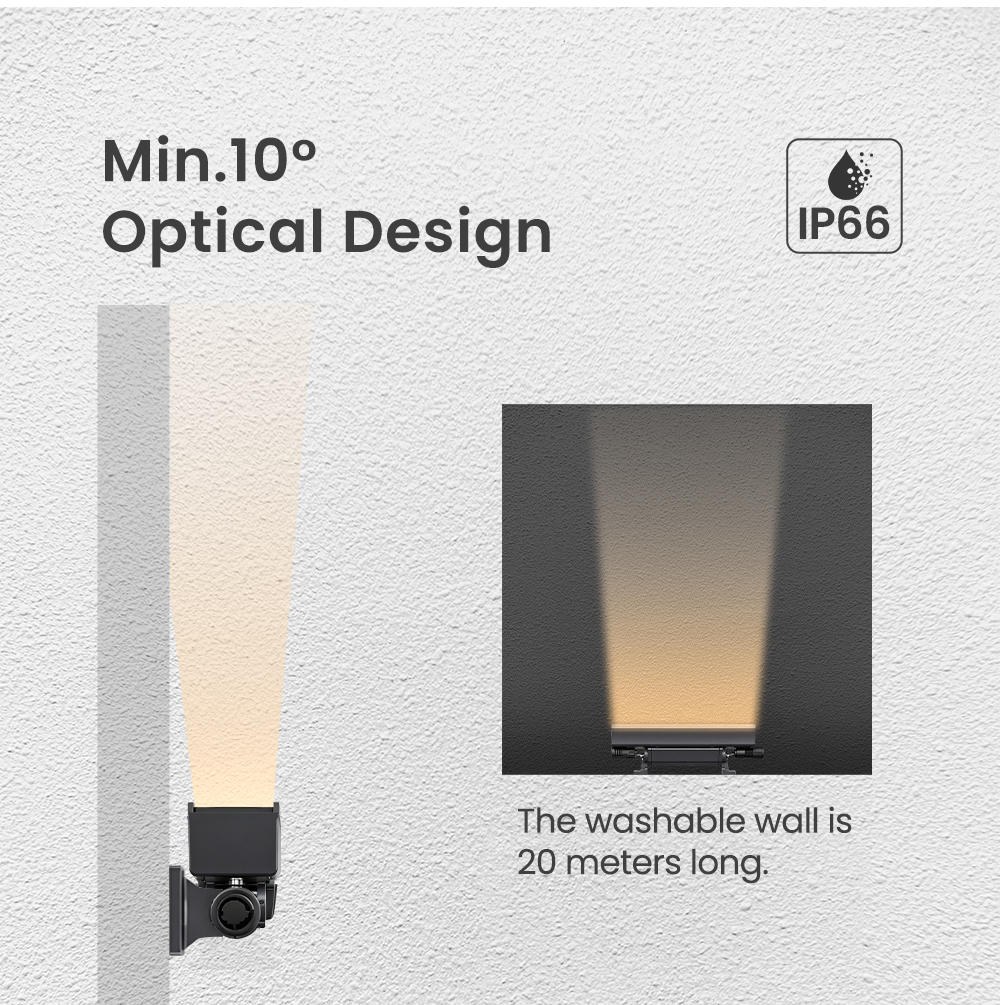

| IP Rating | IP66 |
| IK Rating | IK08 |
| Vibration Resistance | 3G Rating (ANSI C136.31) |

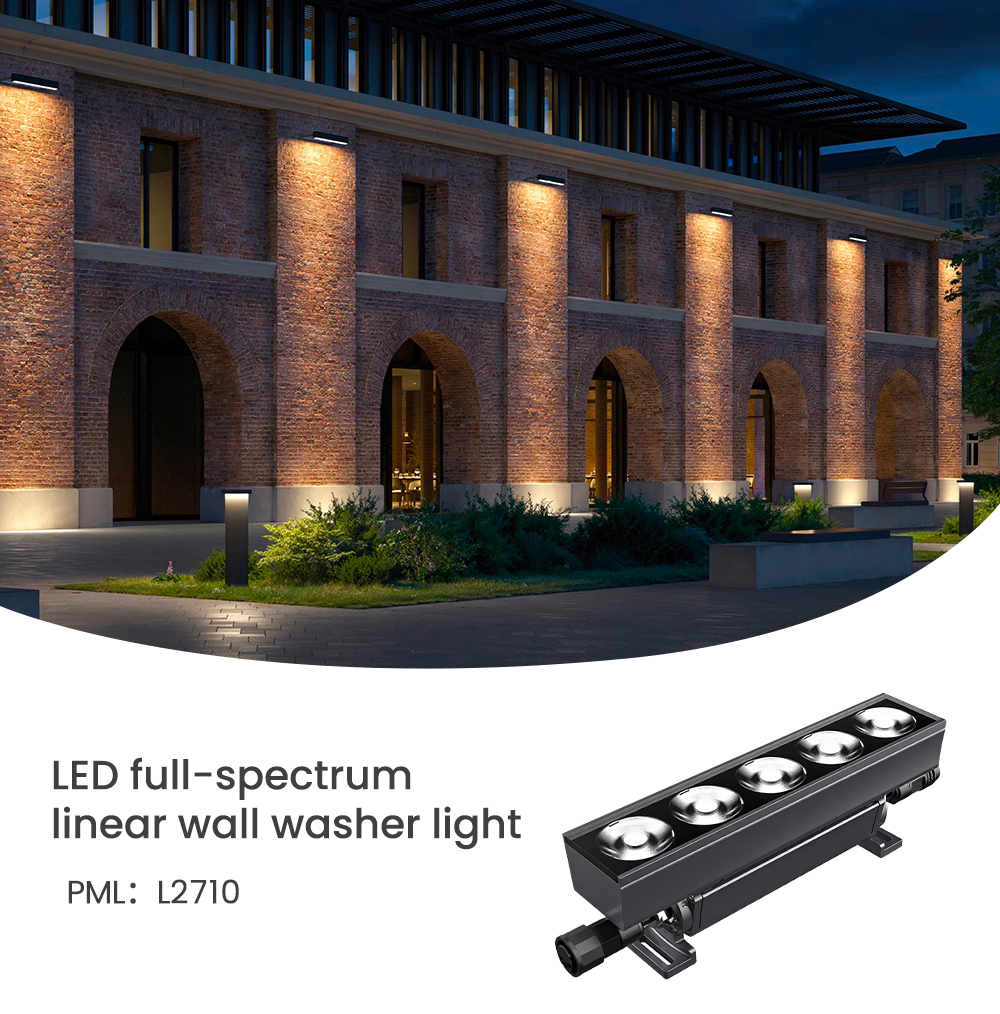

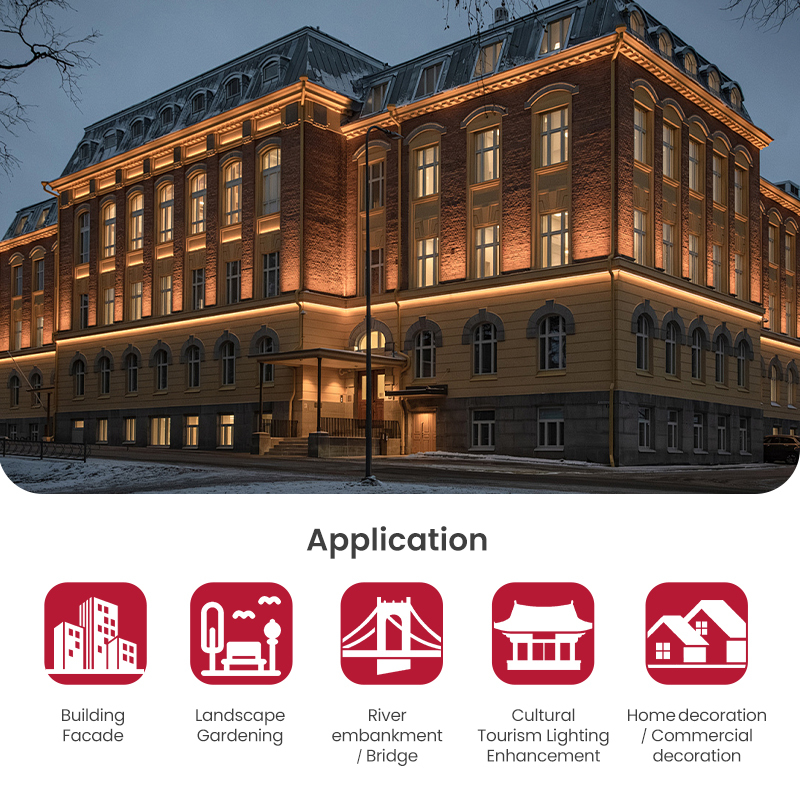

| Application Environment | Outdoor use |
| Certifications | ETL, CE, FCC, RoHS, REACH |
| Warranty Period | 5 years |
