| Electrical Parameters | |
| Input Voltage | AC 100-240 V, 50/60 Hz |

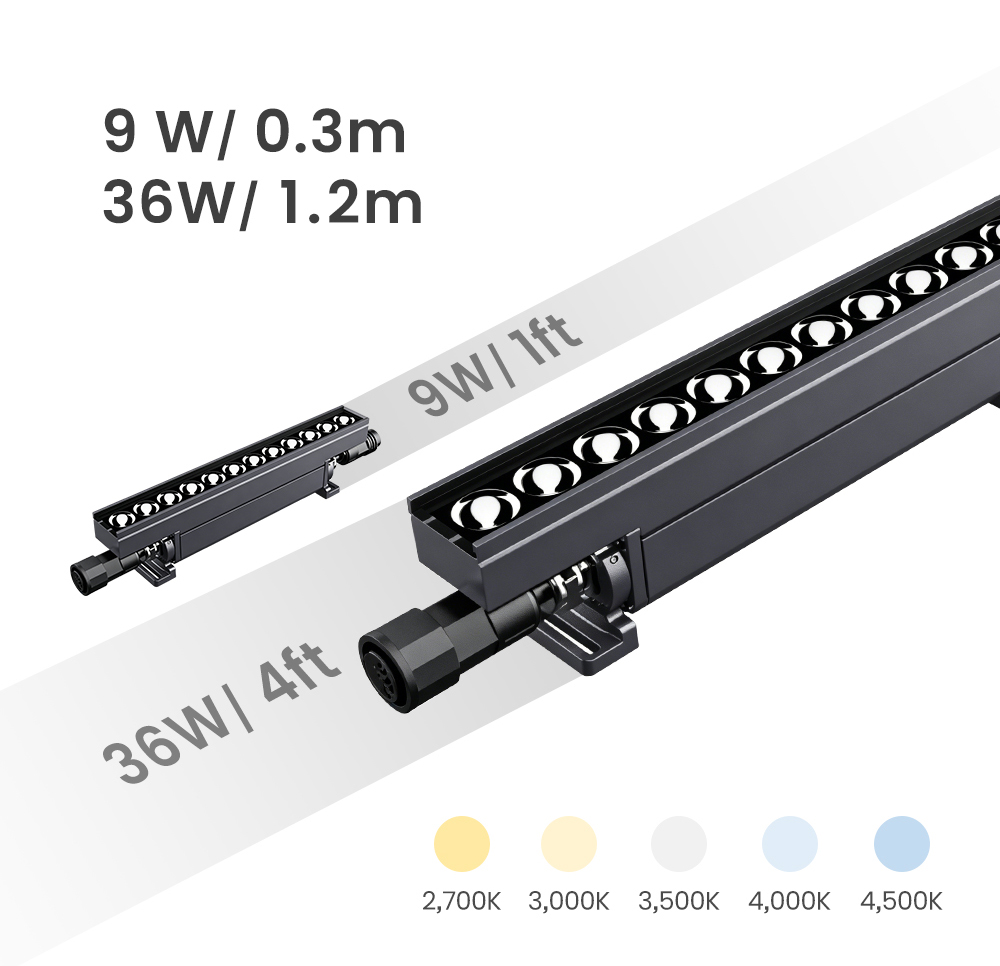

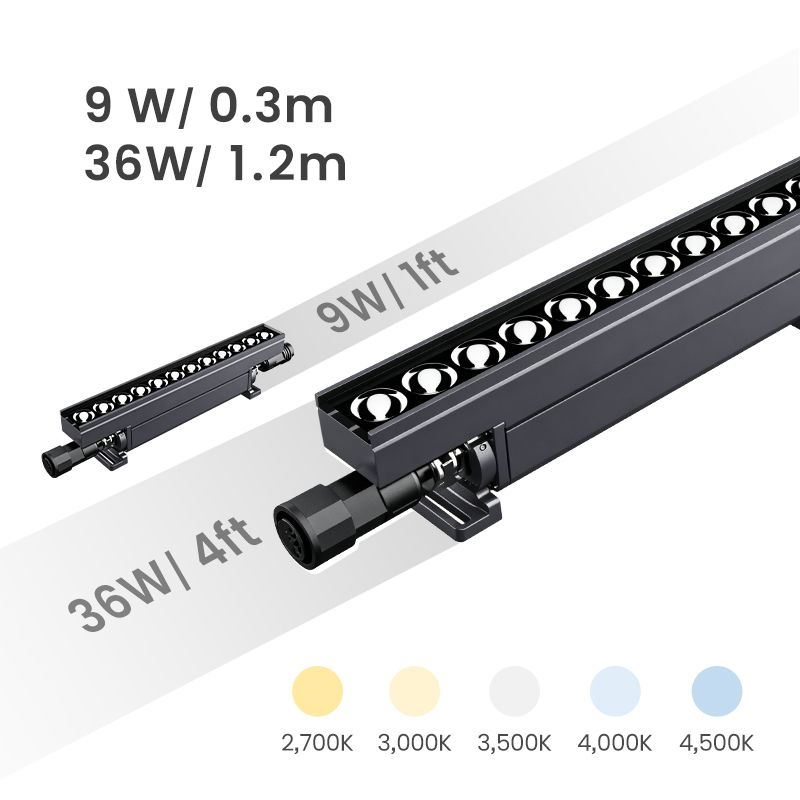

| Power | 36W/1.2m, 12W/0.3m |
| Circuit | Built-in driver and switching power supply |
| Software Features | Constant power design; supports constant power adjustment for individual pixels and full fixture; enables white balance and CCT color temperature tuning, with color temperature range of 1800K–10000K |
| Dimming | Non-linear gamma curve, 0–100% stepless dimming |
| Heat Dissipation | Built-in temperature monitoring system to ensure the fixture operates within a safe temperature range |

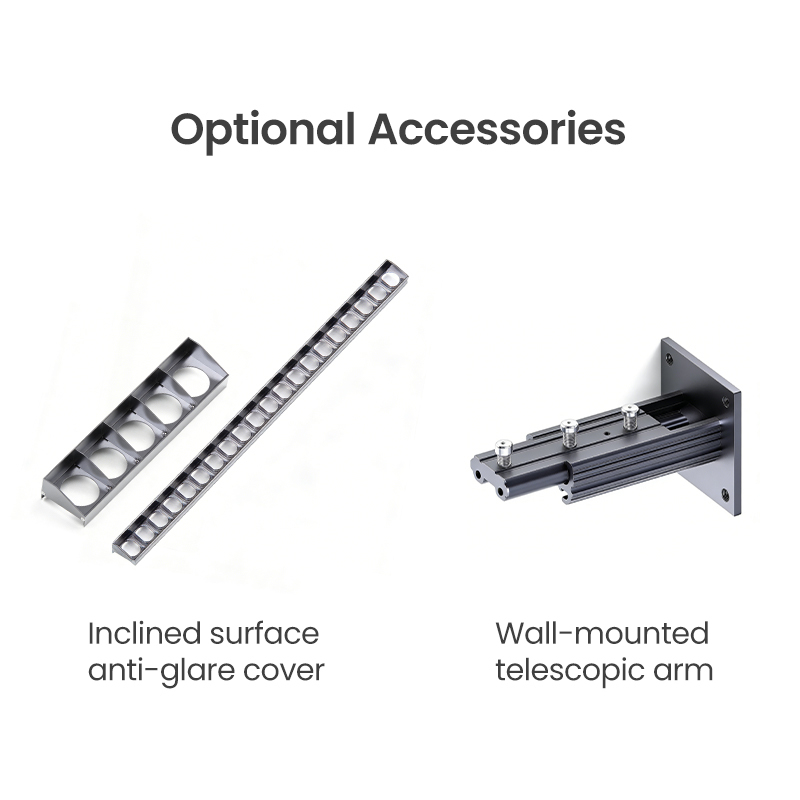

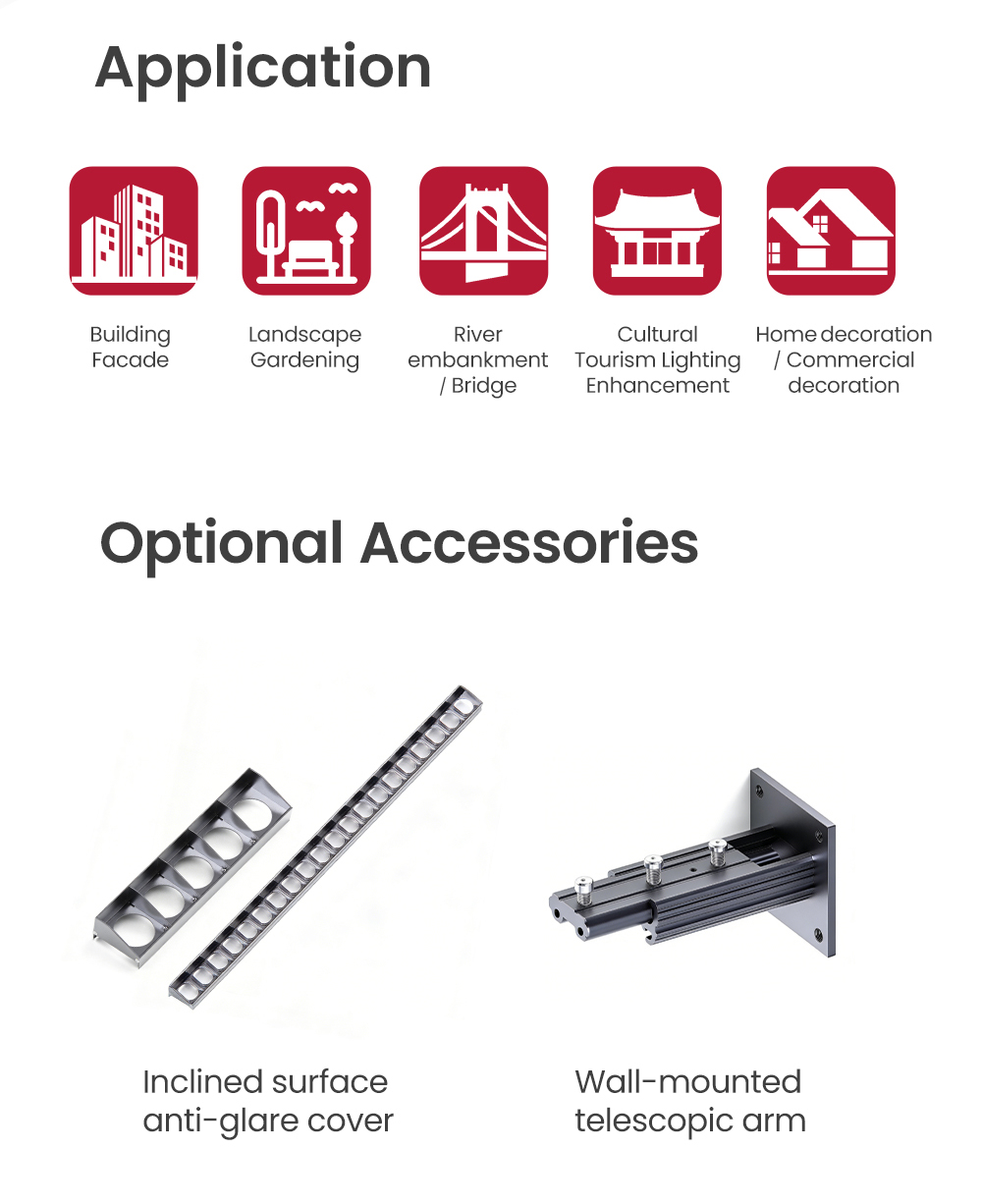

| Optional Accessories | Waterproof plugs, junction box |
| Control | |
| Protocol | DMX/RDM |
| PWM Frequency | 12 kHz |
| RDM Function | Supports DMX/RDM communication; allows real-time adjustment of fixture power, white balance, and other parameters |
| System Compatibility | Compatible with DMX512/RDM third-party control systems |
| Structure | |
| Housing | High-strength AL6063 extruded aluminum |
| Surface Coating | Anti-salt spray polyester powder coating; available colors: dark grey, black, white |

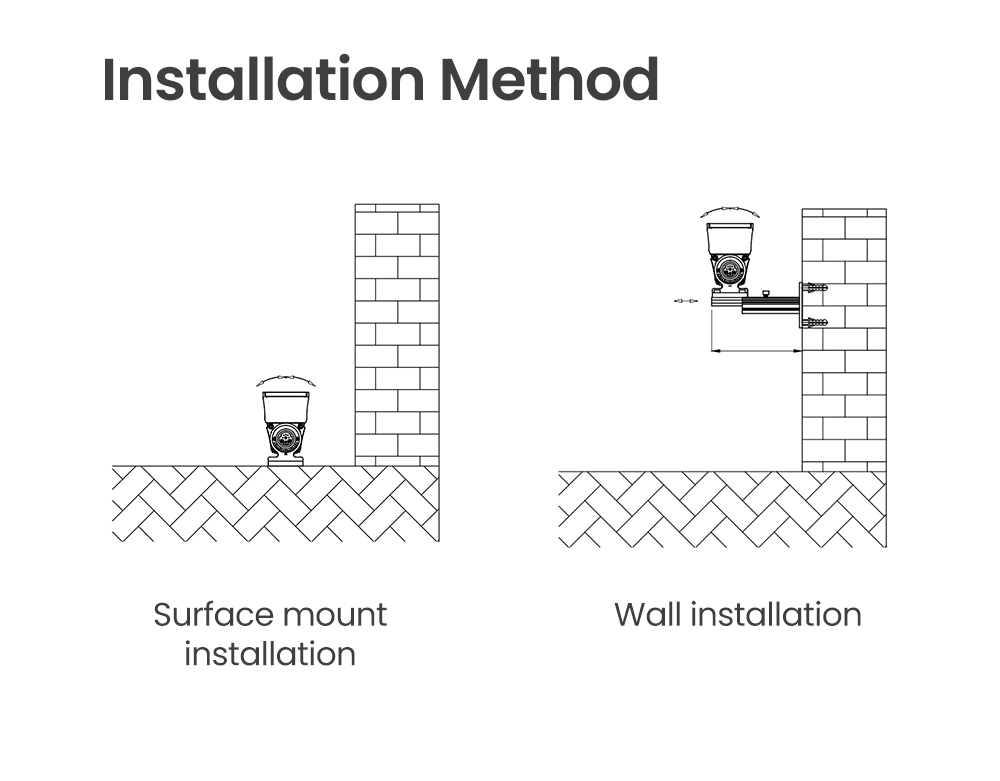

| Installation | Surface mount, wall mount, adjustable telescopic installation accessories |
| Adjustment Range | ±90° |
| Operating Temperature | -40°C to 50°C |
| Storage Temperature | -25°C to 70°C |
| Certifications | |

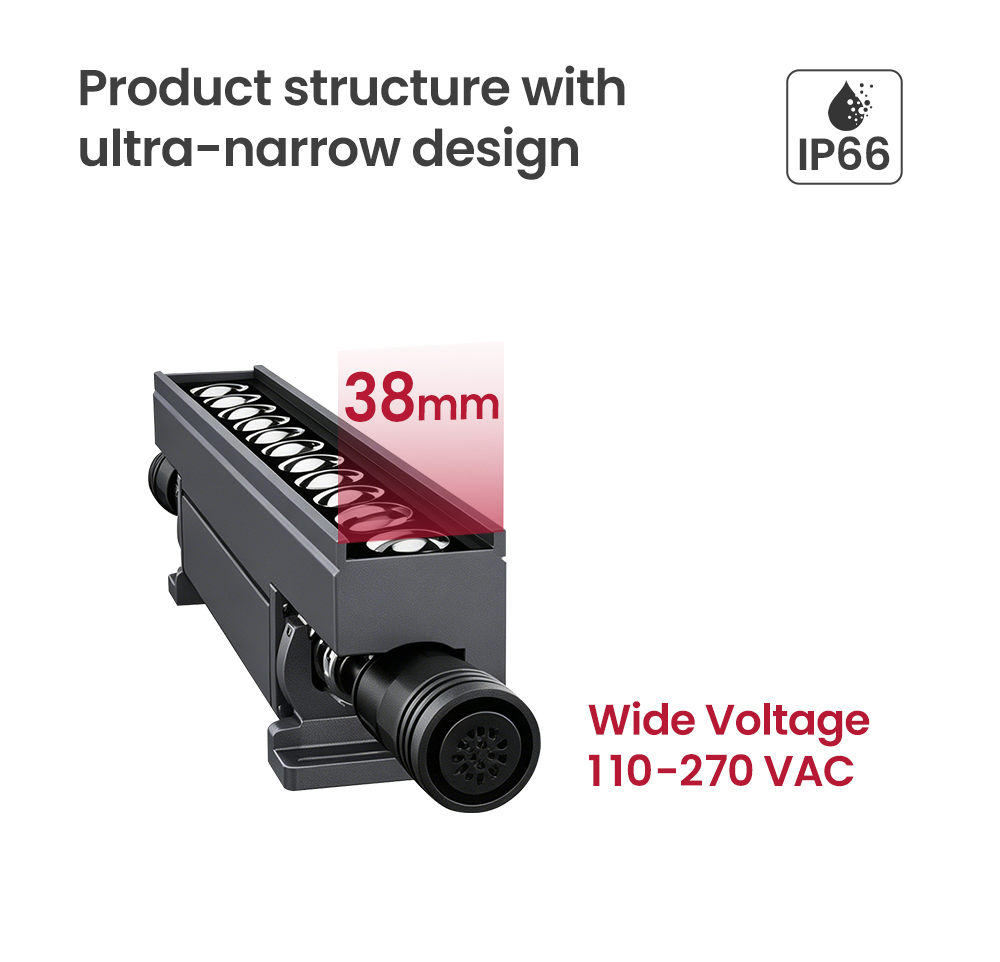

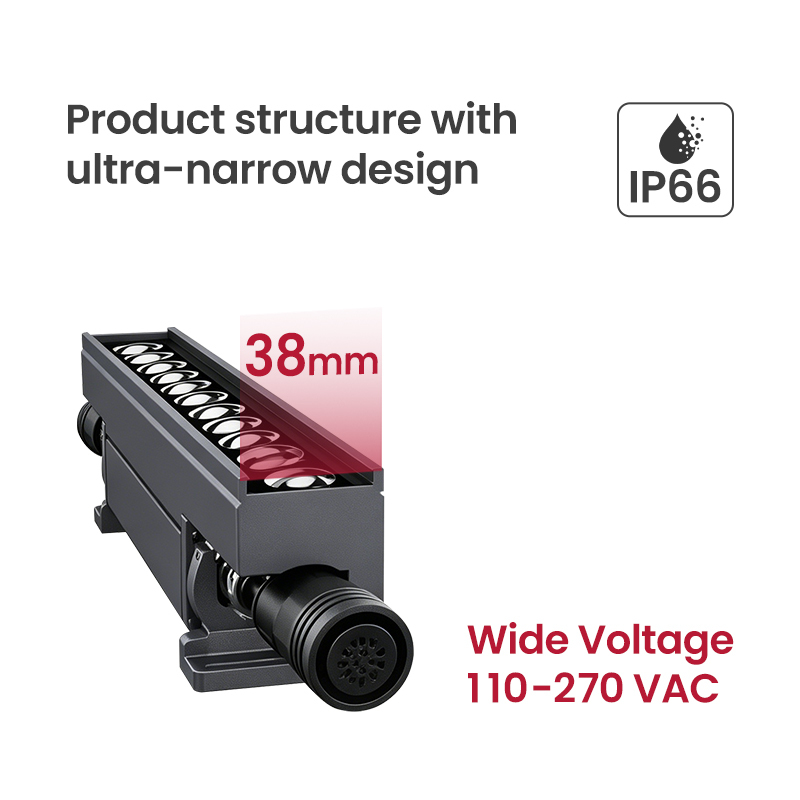

| IP Rating | IP66 |
| IK Rating | IK08 |
| Vibration Resistance | 3G Rating (compliant with ANSI C136.31) |

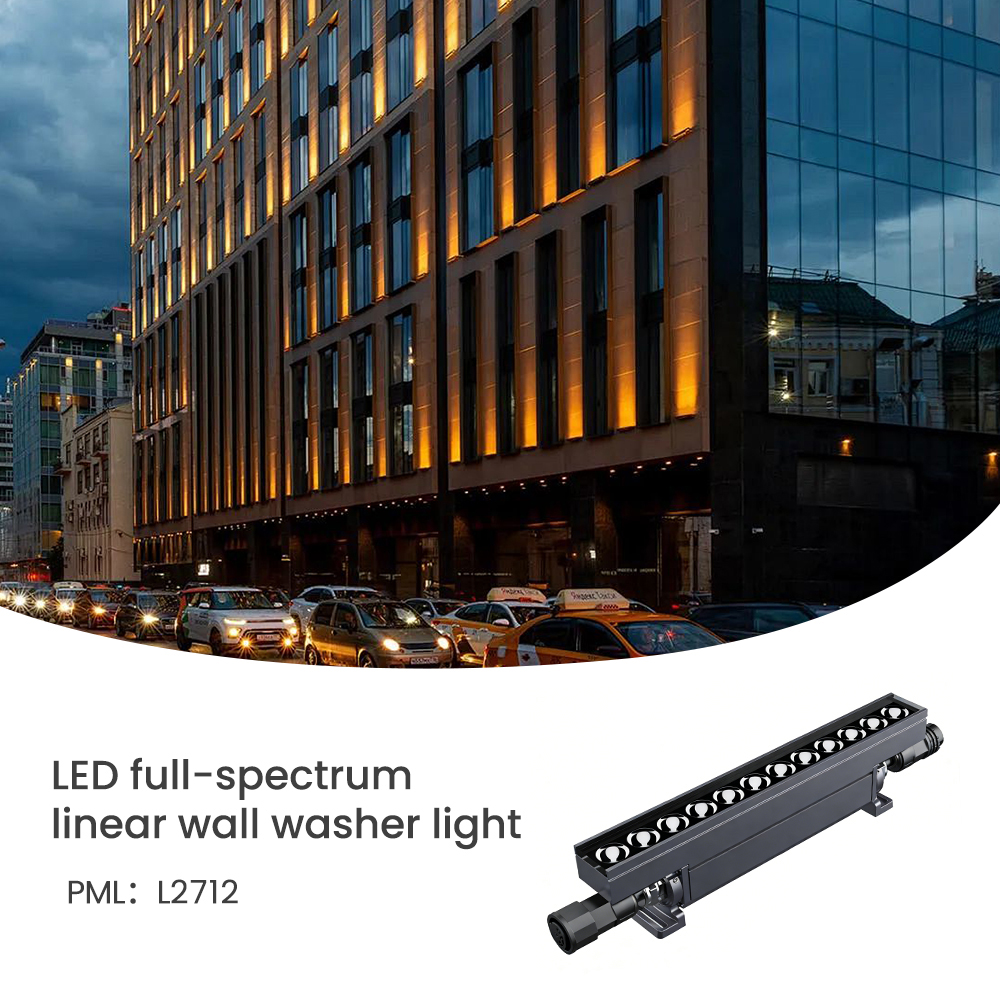

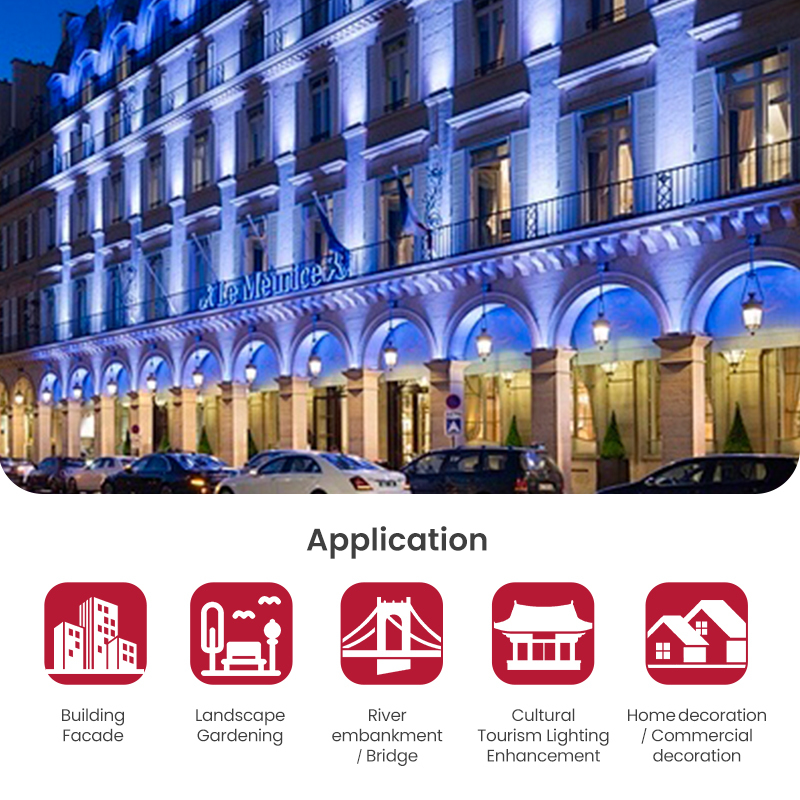

| Application Environment | Outdoor use |
| Certifications | ETL, CE, FCC, RoHS, REACH |
| Warranty Period | 5 years |
