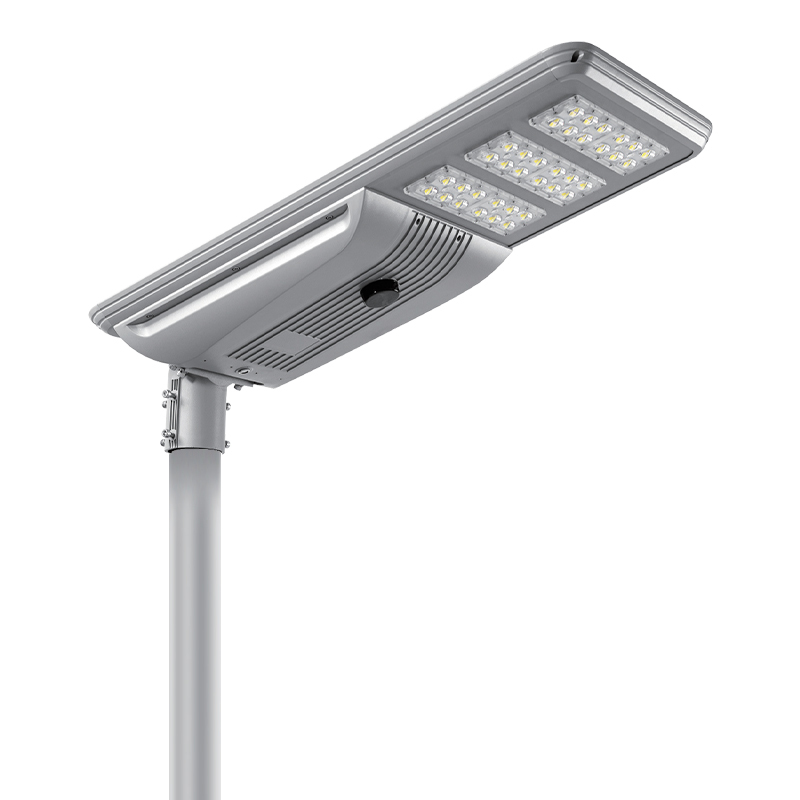

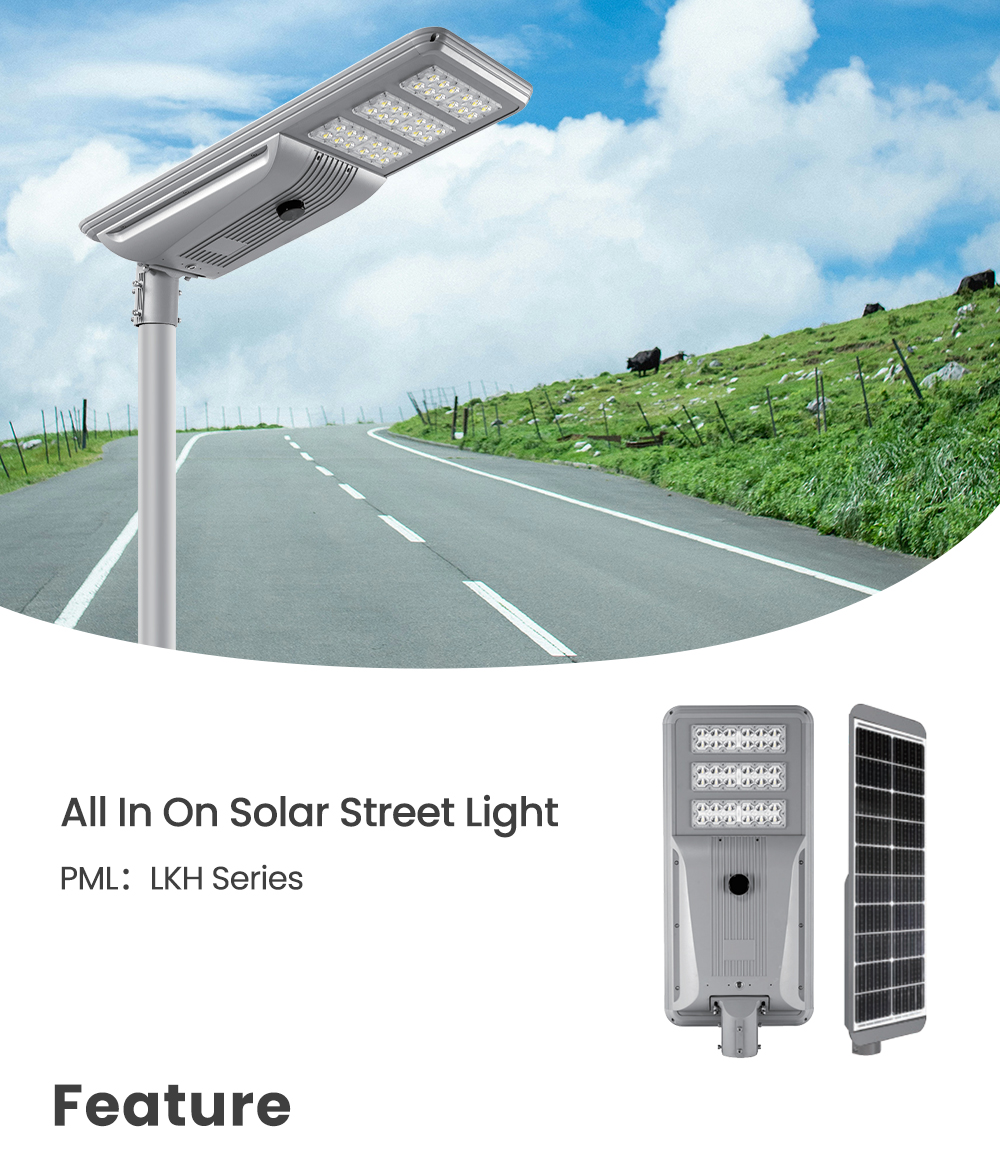

XZ-LKH Series

Name: XZ-LKH Series
Brand: Starlight
Availability: InStock
Rating: 5 (1 reviews)

PRODUCTDESCRIPTION

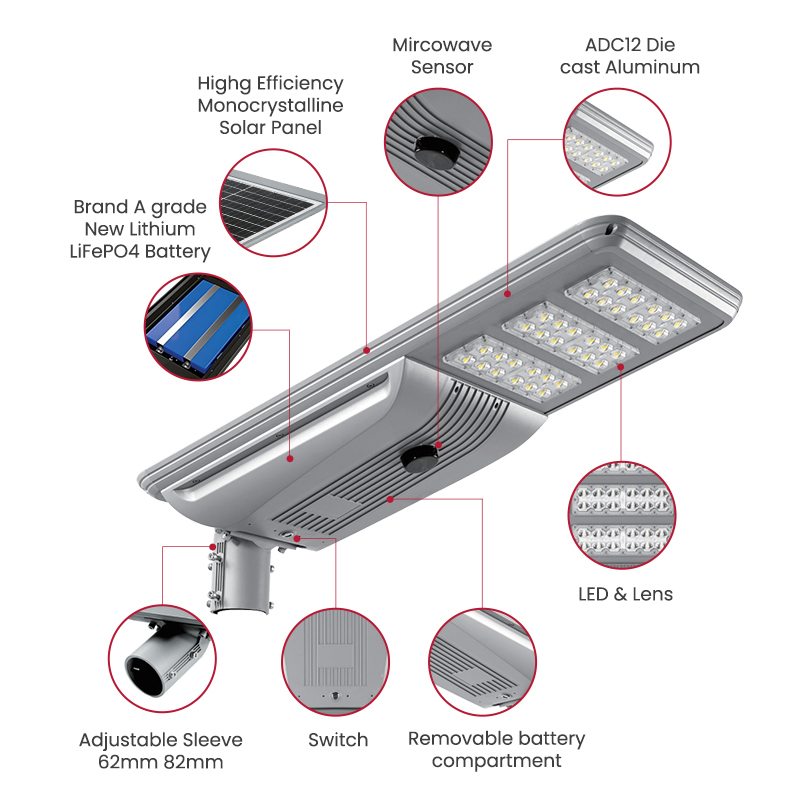

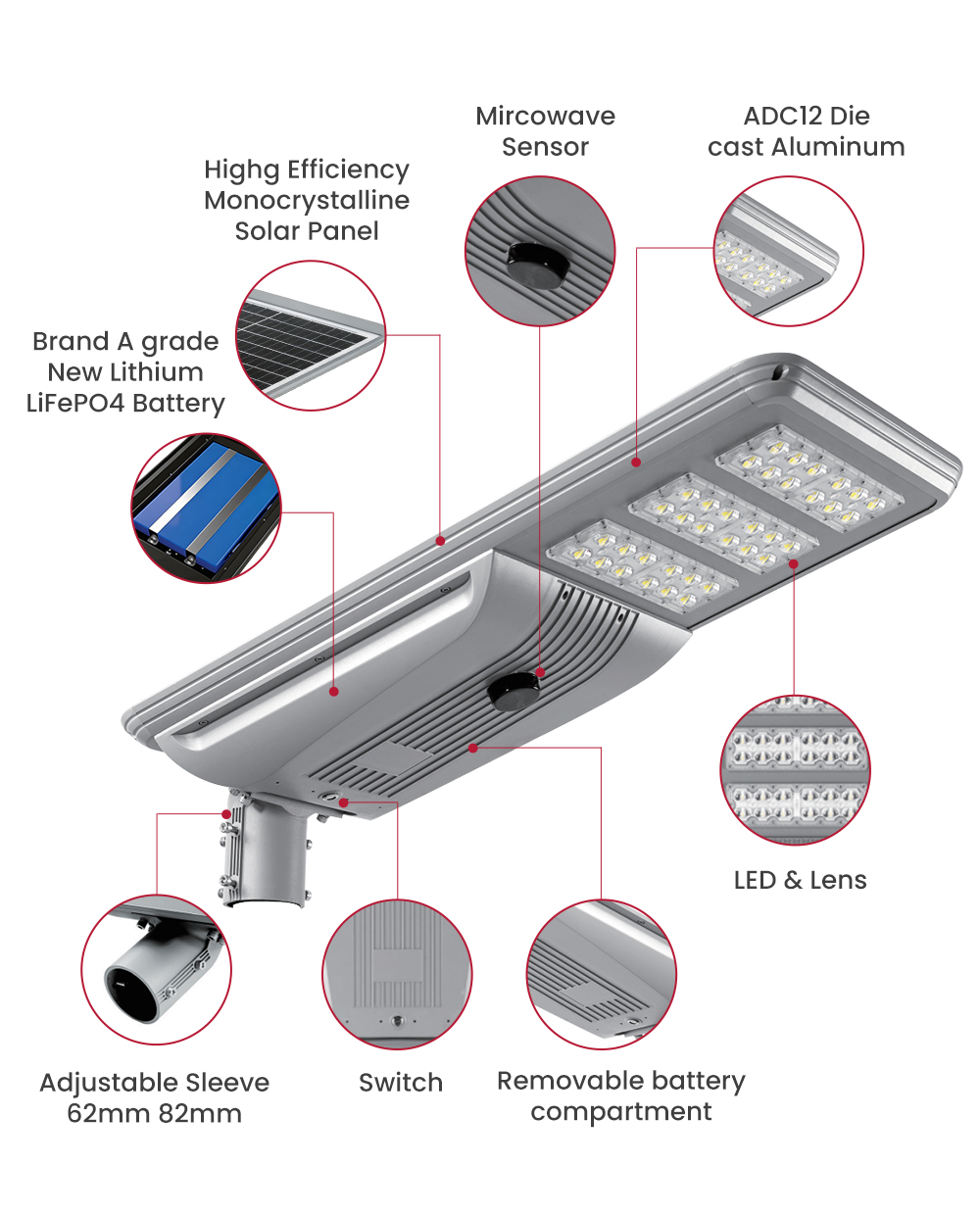

1. Easy Installation & Maintenance
Modular design with replaceable battery compartment for quick servicing.

2. High-Performance Battery
LiFePO4 (Lithium Iron Phosphate) battery supports 3-5 rainy days of backup power.Brand-new cells with 2,500+cycles, deliver-ing 6-8 years of reliable operation.

3. Ultra-Efficient Lighting
200 Im/W high luminous efficacy with4 cores high efficiency (industry-leading quality).

4. Advanced Solar Charging
Monocrystalline silicon solar panel + MPPT controller for 4-6-hour fast charging.

5. Exceptional Longevity
50,000-hour lifespa.
Optical lens: High light transmittance, soft glare-free illumination, and extended durability.

GET A QUOTE

Add to Quote List View Quote List

Description

Easy Installation
All-in-one design for hassle-free setup.
Adjustable tilt angle (0° to 15%) for flexible column-top or lateral mounting.
No trenching required-cable-free installation saves time and costs.
Intelligent Performance
Self-diagnostic LED indicators for real-time battery and charging status.
Hybrid charging technology ensures full battery capacity year-round, even in seasonal changes.
Durable & Long-Lasting
Aluminum die-cast housing with LiFePO4 battery for extended lifespan.
Weatherproof & rugged: IP65-certified against water, dust, and corrosion.
Withstands extreme conditions, including1,000+ hours of salt spray testing.
Smart Energy Savings
Built-in PIR motion sensor detects movementand dims lights when inactive, reducing energy consumption.
Suitable for harsh environments
Waterproof, dustproof, corrosion resistant. Extreme weather conditions, IP65 certification, 1000 hours of salt spray testing.
Strong seasonal flexibility
Smart hybrid charging ensures fullbattery capacity every day.
Seamless Integration
Retrofit-ready: Compatible with existing 220VAC infrastructure and utility poles.

Product Pamameter

MODEL NUMBER	LKH-30W	LKH-40W	LKH-60W	LKH-80W	LKN-100W	LKN-120W
Power	30W	40W	60W	80W	100W	120W
Solar Panel	18V/50W Mono	18V/60W Mono	18V/80W Mono	18V/105W Mono	18V/130W Mono	18V/150W Mono
Battery	Lithium LifePO4 battery 3.2V 72AH(231WH)	Lithium LifePO4 battery 3.2V 100AH(320WH)	Lithium LifePO4 battery 12.8V 30AH(384WH)	Lithium LifePO4 battery 12.8V 45AH(576WH)	Lithium LifePO4 battery 12.8V 60AH(768WH)	Lithium LifePO4 battery 12.8V 75AH(960WH)
LED	4 cores high efficiency smd3030 96PCS	4 cores high efficiency smd3030 144PCS	4 cores high efficiency smd3030 192PCS	4 cores high efficiency smd3030 240PCS	4 cores high efficiency smd3030 288PCS	4 cores high efficiency smd3030 336PCS
Product Size	828408150 mm	933408150 mm	1173408150mm	1388408150mm	1603408150mm	2006408150mm
Net Weight	10.5 kg	11.5 kg	13.5 kg	16 kg	18.5 kg	22 kg
Material	Die Casting Aluminum+PMMA
Efficacy	200 LM/W
Solar panel conversion efficiency	23.8 %
Luminous Flux	6000 LM	8000 LM	12000 LM	16000 LM	20000 LM	24000 LM
Controller	MPPT Cotroller
Light Angle	75*155° / transmittance:＞95%
Cloud platform system management	lot Control Management System（Optional）
Lighting Method	Intelligent control + Microwave induction + segmented time control
Discharge Time	3-5 rainy days
Installation Height Recommended	5-6 m	6-8 m	8-10 m	10-12 m	12-14 m	14- 16m
